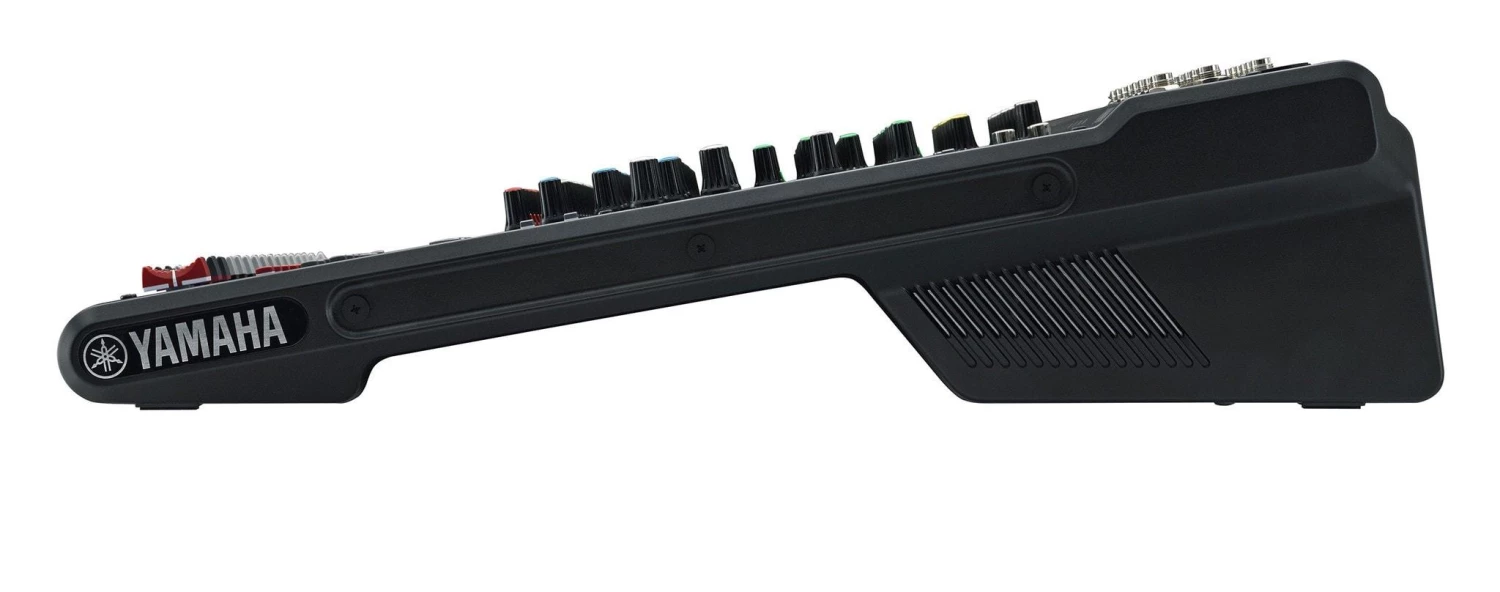

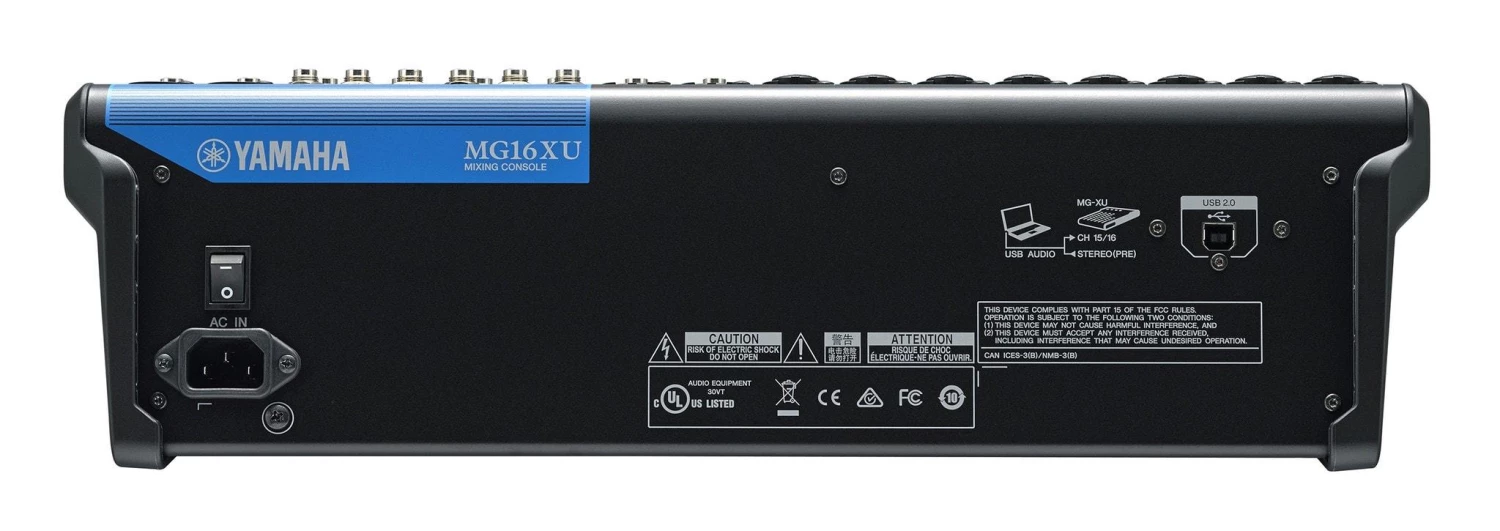

Yamaha MG16XU 16-Channel Pro Audio Mixing Console Mixing Consoles

For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha’s renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha’s high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.

Features

• 16-Channel Mixing Console
• Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus
• 4 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit/192kHz 2in/2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase Al DAW software download version
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Rack Mount Kit Included
• Metal chassis
• Dimensions(W×H×D): 444 mm x 130 mm x 500 mm (17.5″ x 5.1″ x 19.7″)
• Net Weight: 6.8 kg (15.0 lbs.)

Specs

• Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
• I/O Phantom power +48 V
• Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
• Input Channels Mono[MIC/LINE] 8
• Mono/Stereo[MIC/LINE] 2
• Stereo[LINE] 2
• Output Channels STEREO OUT 2
• MONITOR OUT 1
• PHONES 1
• AUX SEND 4
• GROUP OUT 4
• Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
• Input Channel Function PAD 26 dB (Mono)
• HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
• COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
• EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
• EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
• General specifications
• Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
• Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
• Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
• Crosstalk -78 dB
• Power requirements AC 100 – 240 V, 50 / 60 Hz
• Power consumption 30 W
• Dimensions W 444 mm (17.5″)
• H 130 mm (5.1″)
• D 500 mm (19.7″)
• Net weight 6.8 kg (15.0 lbs.)
• Accessories Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
• Others Operating Temperature: 0 to +40˚C
