Sale!

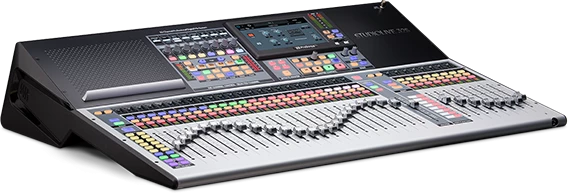

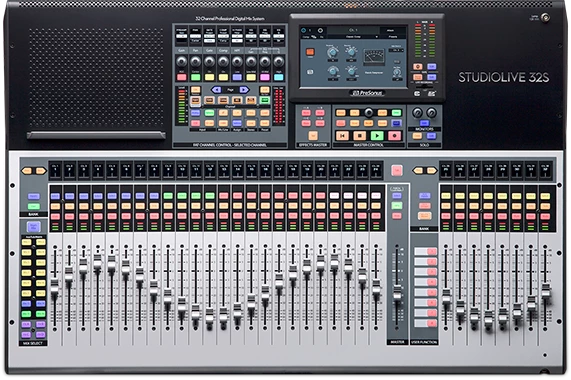

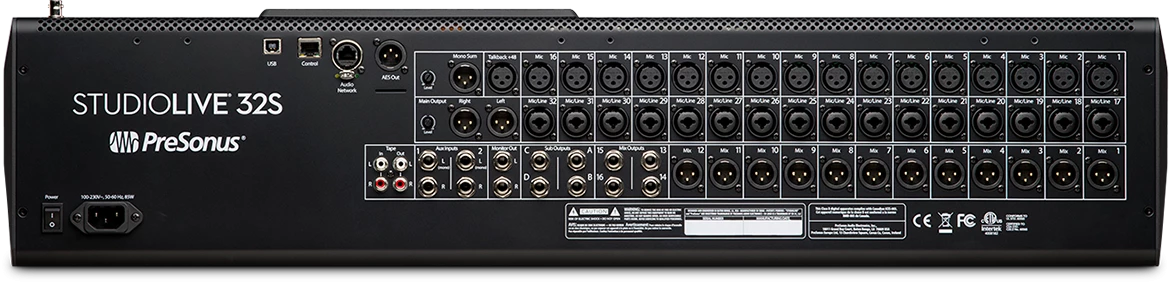

Presonus StudioLive Series III 32S | 32-Channel Digital Mixer Mixing Consoles

Presonus StudioLive Series III 32S | 32-Channel Digital Mixer Mixing Consoles

Original price was: $533.00.Current price is: $94.99.

SKU: Pro Audio Mixer 4164052025484 Categories: Mixing Consoles, Other Equipment, Pro Audio Tags: BOB, In-stock, Over-1000, Presonus, Reverbsync-shipping-profile:Standard Ground Shipping Over 39.99

Get the quality you deserve, for less.
Quality Meets Affordability
Multiple payment options for secure shopping with SSL
Safe Shopping Guaranteed

Description
Reviews (0)

The most powerful and flexible digital mixer for recording and live sound.

The 32-channel StudioLive® 32 is the most powerful and flexible digital mixer available for live sound and recording. PreSonus® gave the StudioLive 32 the works: 40 total inputs; extensive AVB networking; more recording tracks over USB than any other digital mixer; touch-sensitive motorized faders; and a host of State-space modeled Fat Channel plug-ins that let you expand your processing options. Packaged with a full suite of integrated software, including PreSonus’ Studio One® DAW and Capture™ live-recording software, the StudioLive 32 is a groundbreaking professional digital mixer and USB audio interface in a compact, scalable design.

Technical Specifications

Microphone Preamplifier
Input Type	XLR Female, balanced
Frequency Response to Main Output (at unity gain)	20-20 kHz, ±0.5 dBu
Input Impedance	1 kΩ
THD to Main Output	<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)	94 dB
Common Mode Rejection Ratio (1 kHz at unity gain)	65 dB
Gain Control Range (±1 dB)	0 dB to +60 dB
Maximum Input Level (unity gain)	+12 dBu
Phantom Power (±2 VDC)	48 VDC, switchable per channel

Line Inputs
Type	¼” TRS Female, balanced
Frequency Response to Main Output (at unity gain)	20-20 kHz, ±0.5 dBu
Input Impedance	10 kΩ
THD to Main Output	<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)	94 dB
Maximum Input Level	+18 dBu

Tape Inputs
Type	RCA Female, unbalanced (stereo pair)
Maximum Input Level	+12 dBu, ±0.5 dBu

XLR Outputs
Type	XLR Male, balanced
Maximum Output Level	+24 dBu, ±0.5 dBu
Output Impedance	100Ω

Line Outputs
Type	¼” TRS Female, balanced
Maximum Output Level	+18 dBu, ±0.5 dBu
Output Impedance	100Ω

Tape Outputs
Type	RCA Female, unbalanced (stereo pair)
Maximum Output Level	+18 dBu, ±0.5 dBu
Output Impedance	100Ω

Headphone Output
Type	¼” TRS Female, active stereo
Maximum Output	100 mW/ch. @ 60Ω load
Frequency Response	20 Hz – 20 kHz (± 0.5 dB)
THD+N	0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
S/N Ratio	96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

System Crosstalk
Input to Output	-90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Adjacent Channels	-87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Digital Audio and Control
ADC Dynamic Range	115 dB (A-wtd, 48 kHz)
DAC Dynamic Range	115 dB (A-wtd, 48 kHz)
USB Recording Port	USB 2.0, Type-B
Bluetooth™ Input	4.1, stereo
AES/EBU Output	XLR Male
Network Control Port	RJ-45
AVB Audio Network Port	Locking XLR Ethernet
Internal Processing	32-bit, ﬂoating point
Sampling Rate	48 kHz, 44.1 kHz
A/D/A Bit Depth	24
Reference Level for 0 dBFS	+18 dBu
Total System Latency	1.9 ms (local routing, analog in-analog out, all processing active)

Clock
Jitter	<20 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation	>60 dB (1 ns in, 1 ps out)

Power / Environmental
Connector	IEC
Input-Voltage Range	90 to 230 VAC (±10%)
Power Requirements (continuous)	85W
Recommended Ambient Operating Temperature	0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
