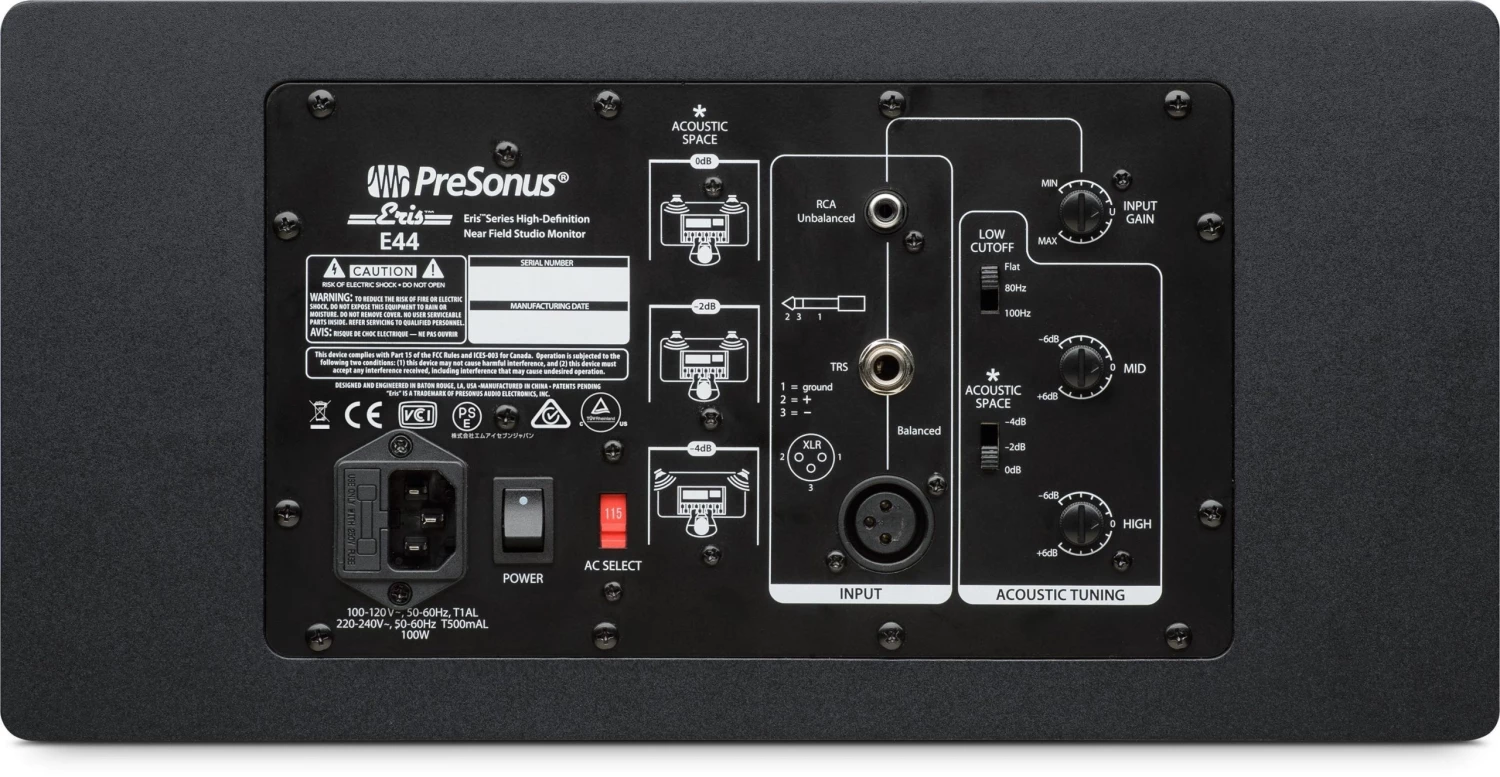

Inputs | |
|---|---|
| 1- Balanced XLR | |
| 1- Balanced ¼” TRS | |
| 1- Unbalanced RCA |
Performance | |
|---|---|
| Frequency Response | 55 Hz – 22 kHz |
| Crossover Frequency | 2.9 kHz |
| LF Amplifier Power | 50W |
| HF Amplifier Power | 35W |
| Peak SPL (@ 1 meter) | 103 dB |

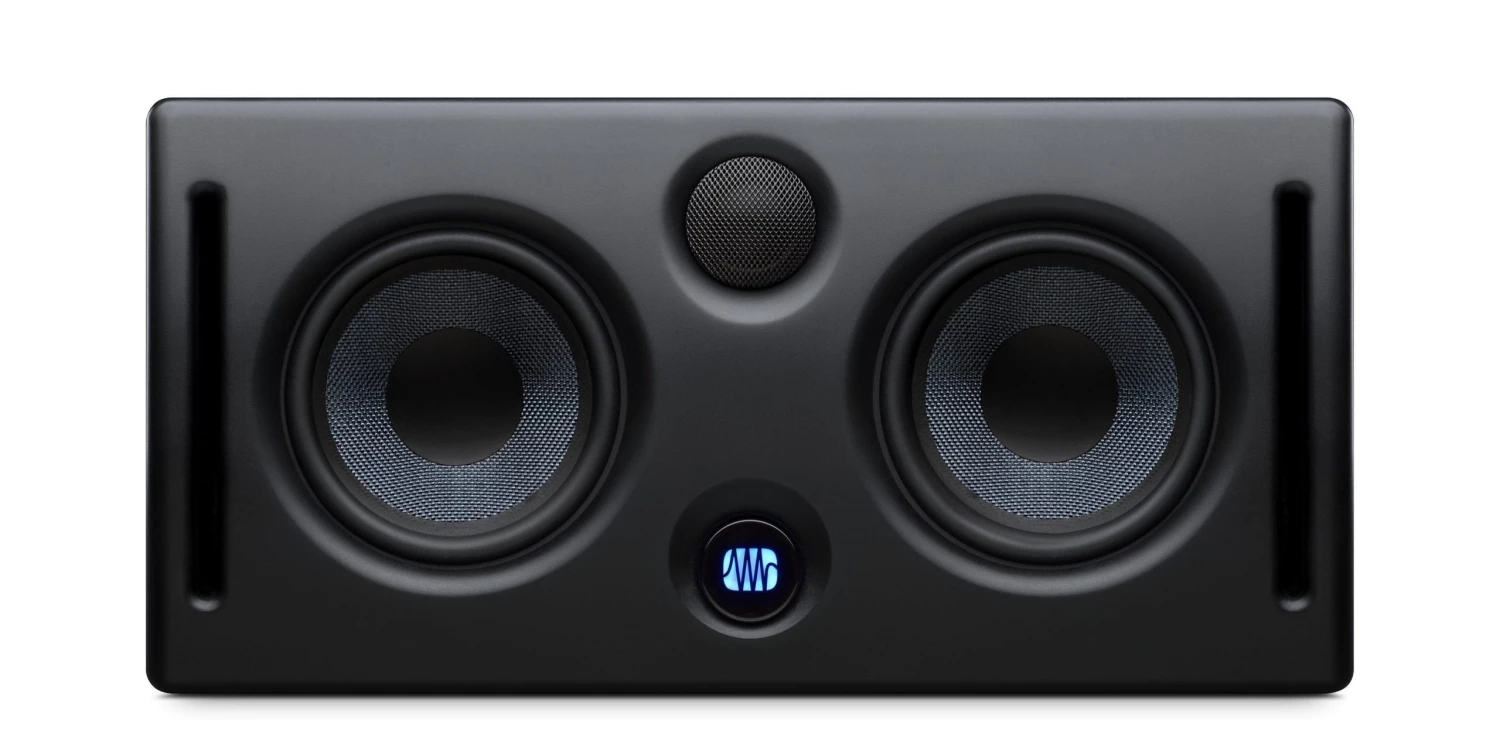

| LF Driver | Dual 4.5” Kevlar® |
| HF Driver | 1.25” silk dome |
| Input Impedance | 10 kΩ |
User Controls | |
|---|---|
| Volume Range | A-type taper |
| MF Control | Variable (-6 to +6 dB) |
| HF Control | Variable (-6 to +6 dB) |
| Low Cut | Flat, 80 Hz, 100 Hz |
| Acoustic Space | Flat, -2 dB, -4 dB |
Protection | |
|---|---|
| RF interference | |
| Output-current limiting | |
| Over-temperature | |
| Turn-on/off transient | |
| Subsonic filter | |
| External mains fuse |
Power | |
|---|---|
| 100-120V ~50/60 Hz | |
| 220-240V ~50/60 Hz |
Cabinet | |
|---|---|
| Vinyl-laminated, medium-density fiberboard |
Physical | |
|---|---|
| Width | 14.3” (365 mm) |
| Depth | 7” (180 mm) |
| Height | 7” (180 mm) |
| Weight | 11.9 lbs (5.4 kg) |
